Shaft parts

Shaft parts

[Accurate Shaft]

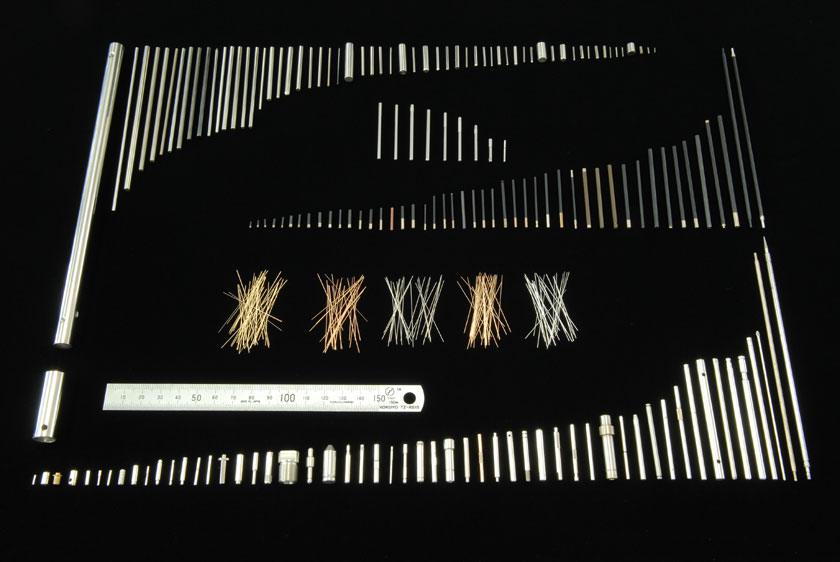

Precision shafts finished with center-less grinding following the material cutting work with high roundness, straightness and controlled surface roughness. We provide not only the straight but also stepped shaft, D-cut processed shaft, hole cut shaft, knurled shaft and thread cut shaft. As for the shaft end, we provide the round, chamfer and spherical shapes also. The outside dimension can be selected from the order of micrometers.

• Materials:stainless,steel,copper,others.

[Coating Shaft]
These shafts are coated with plastics and finished with center-less grinding. The products have high quality and precision in such point as the sliding property, abrasion resistance, roundness and surface roughness. The processing size range is around 0.3 to 10 mm in diameter. (The processing size range has some conditions.)

• Materials:stainless.

[Suspension wire]
These products are phosphor bronze or copper-beryllium alloys machined with our self-manufactured micro cutting machine and have good straightness. They are used in applications such as the optical pickup actuator.
The processing size range is around 0.08 to 0.11 mm in diameter. (The processing size range has some conditions.)

• Materials:copper alloys.
