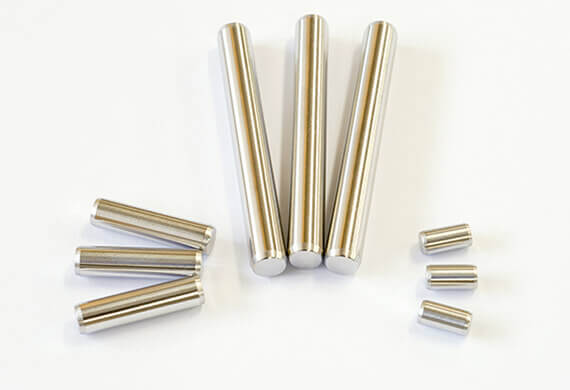

Standard ProductsParallel Pins Model-B(h7)

平行ピン B種

Features

This has a lower accuracy of the outer diameter dimension compared to Model A. and used for such as the rotating shafts and hinges. Customers also can additionally machine it.
※Materials:S45C-Q,SUS303,S45C-A.
※In the product name, h7 represents one of the fit tolerances standardized by JIS.

Size table PDFPDFダウンロードボタン
