Standard ProductsToothed Slotted Spring Pins for General Purposes

スプリングピン 波形 一般用


These products are made from plate materials which have spring properties processed with rolling up technique and the joint portion will have a slot. These are used to retain radial spring force and used as parts for pins or hinges. In the case of receiving dynamic load, specifying the insert direction is recommended.
→As for the information about technology, please refer to the Technical information.
※Materials:SUS420J2,spring steel.

Size table PDFPDFダウンロードボタン

This type is suitable for an automatic insert as pins tend to not tangle with each other compared to the straight type. This type is also excellent in roundness and against the pulling load as the application length is long. Customers can choice materials depending on the applied parts, the usage condition and the circumstance in use.

Inquiries by Telephone+81-3-3922-4111


Examples of use

Toothed Slotted Spring Pins for General Purposes

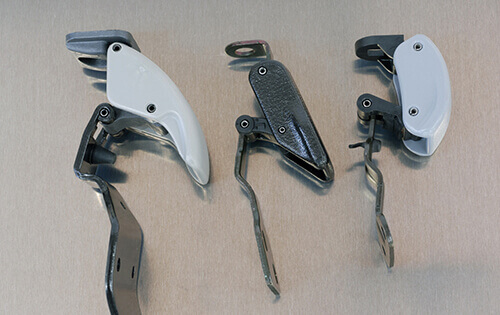

Three spring pins are used at the joints of hinge.
