Standard ProductsToothed Slotted Spring Pins for Light Duty Use

スプリングピン 波形 軽荷重用


These products are made from plate materials which have spring properties processed with rolling up technique and the joint portion will have a slot. These are used to retain radial spring force and used as parts for pins or hinges. In the case of receiving dynamic load, specifying the insert direction is recommended.
→As for the information about technology, please refer to the Technical information.

Size table PDFPDFダウンロードボタン

Compared to the general purpose type pins the plate gauge is thin. This type is suitable for locations where the applied parts are such as aluminum or plastics that require lower insert load.

Inquiries by Telephone+81-3-3922-4111


Examples of use

Toothed Slotted Spring Pins for Light Duty Use

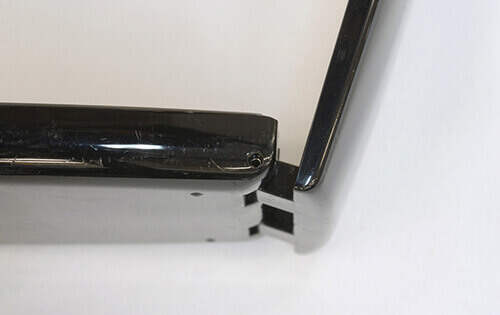

Spring pin is used for the hinge of a compact.
